Type1 | Type2 | Type3 | Type4 |
1 * Motor | 1 * Motor | 1 * Motor | 1 * Motor |
* 1 Solar Panel | * 1 Solar Panel | * 1 Solar Panel | * 1 Solar Panel |
1 * Recharger (EU Plug) | 1 * Recharger (UK Plug) | 1 * Recharger (US Plug) ) | 1 * Recharger (AU Plug) ) |
1 * gearbox | 1 * Gearbox | 1 * Gearbox | 1 * Gearbox |
1 x Accessory Set | 1 x Accessory Set | 1 x Accessory Set | 1 x Accessory Set |
Specification:
Material: ABS
Color: White
Plug: EU/US/UK/AU (optional)
Adapter
Voltage: 100V-240V 50/60Hz
Control Method: App/Voice/Zigbee
Built-in Battery: 1000mAh, 7.4Wh
Voltage: 7.4V
Battery Type: Rechargeable li-polymer battery
Solar Panel: Model: AC606-01
Power: 0.77W
Open-curcuit Voltage: 13.2V
Working Voltage: 11V
Working Current: 70mA
Blinds Driver: Input: 8.4V DC
Rated Torque: 0.45Nm
Rated Current: 1A
Frequency: 2.4GHz
Package Size: 22*22*5.5cm / 8.66*8.66*2.16in
Package Weight: 513g / 18.09oz
About this item:
1. Motor can set upper&bottom limit positions and limits can be
saved even when motor power off.
2. Two running modes:tilting &continuous moving.Motor default
mode is tilting.
3. Motor can be control by APP on your smart phone.
4. Motor speed is adjustable on the APP
5. Large battery capacity support long time working.
7. Powered by charger or solar panel, the solar panel with built in
light sensor for auto-control.

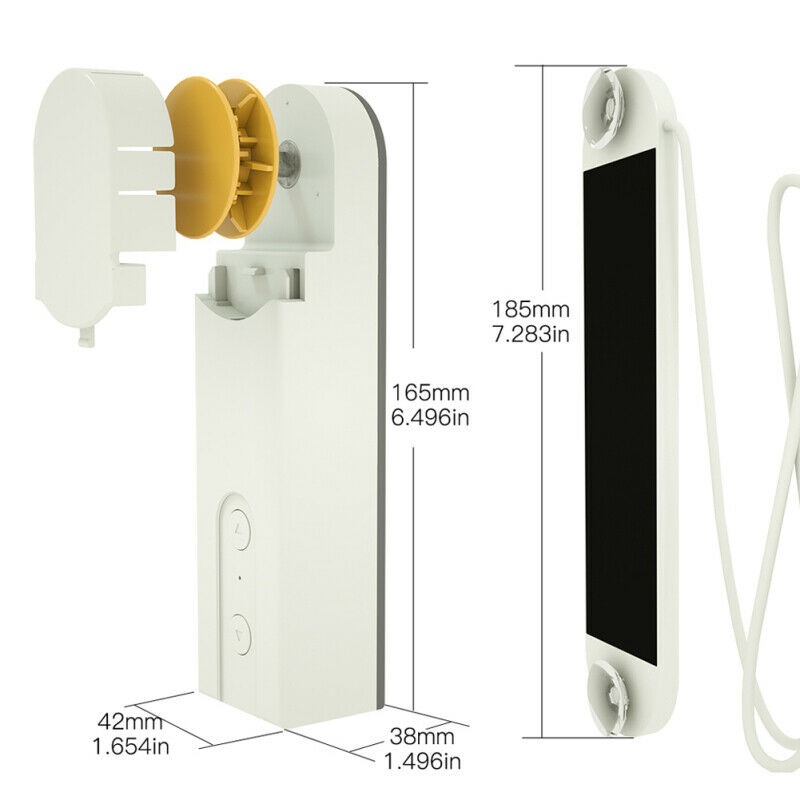

Detailed Images
Product Features:

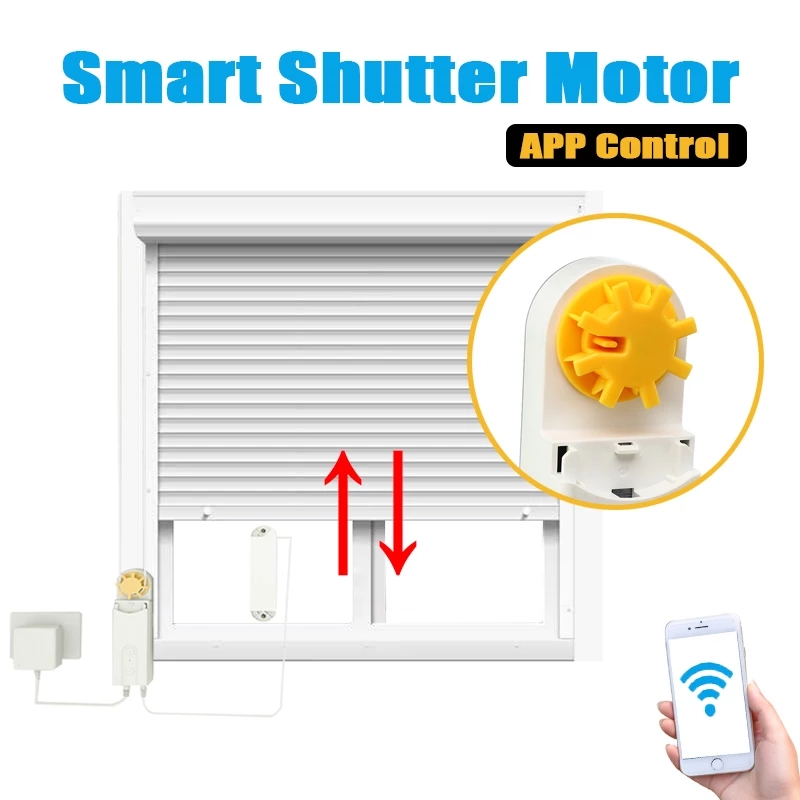

DIY Smart Motorized Roller Shade -- Simply add our smart blinds drive motor to automate your existing
blinds, shades, curtains in the simplest and most cost-effective
way. Motor can set upper & bottom limit positions and limits.
Upgrade App & Voice & Zigbee Control -- Compare with simple tuya wifi smart motorized chain roller, our
upgrade tuya wifi Zigbee-control smart roller shutter apart from
Smartpone App Control (no more time and space limited), Voice
Control (replacement for Alexa and Google Assistant), Manual
Control, which provide you more choices, and make life more smart
and easy.
Solar Panel + Plug Power Supply -- 100-240V plug charging and 11V solar panel powered smart chain
motor, dual way power supply, never worry about power off.
Customize Schedules -- Setting open and close time as your like, such as open when sun
rise and close when sunset, etc. Time + Day + Week programmable,
more flexible setting according to your demands. Max. 6 scenes
setting can be added. It also support Summer and Winter mode. Wide Compatibility -- Compatible with a variety of shades, blinds that has a cord loop
or beaded chain (plastic or metal). Such as, Venetian, Vertical,
Wooden, Roller, Zebra, Shangrila.
Simply DIY Installation -- Drill free installation, come with glue piece, just attach the
motor to the window or wall. Easily install and settin in minutes.
Note: Requires Zigbee 3.0 or later.
Q&A:
Q:May I share the control with family members to control the blinds
together?
A:No,one APP can control several blinds,but one blinds can not be
controlled by several phones at the same time.
Q:Does the motor work with Google Home or Alexa?
A:No,this motor does not compatible with Alexa and Google Home.
Q:Does it only support to control via the AppHow about the old who
can't use the App?
A:Free App control is just a way to control.For the old,they may
just press the UP/DOWN button on the motor itself to control
without using App.
Q:Do I need to have wireless Internet for these to work?
A:No,our motor runs on bluetooth.bluetooth is a must to connect the
device.
Q:If I have several of this kind of motor,can I use one App to
control them together?
A:Yes,the App can add maximum 7 devices.
Q:Can I use this motor to control loop corded cellular, honeycomb
shades or vertical blinds?
A:Absolutely,this motor works with any plastic beaded chain or
metal beaded chain that is looped.
