Type | Smart Zigbee dual-mode touch wall switch |
Size | 86x86x35mm |
Color | white/black/gold/blue |
Rated Power | 600W |
Rated Voltage | 170-240V AC50/60Hz |
Wireless Frequency | 2.4GHz |
Wireless Standard | IEEE802.11b/g/n |
Support System | Alexa/Google Home/Tmall Wizard/Roqi/Xiaoai/Xiaodu |
Gross Weight | 218g |
Packing size | 106x100x51mm |

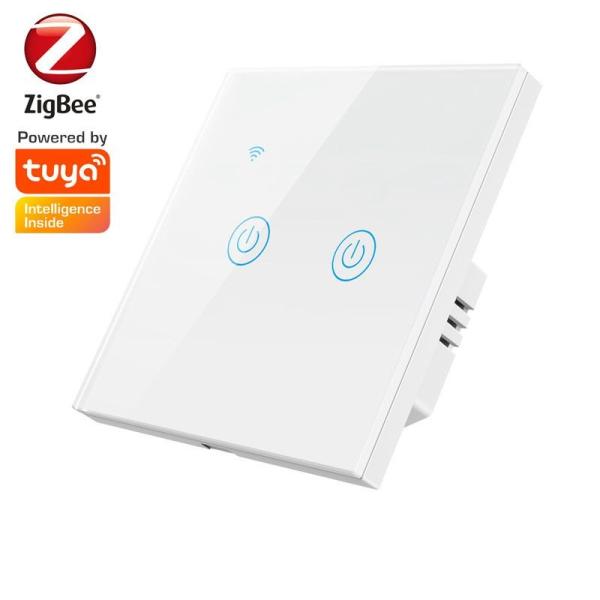

EU Standard 1/2/3/4 Gang Tuya Smart Zigbee Touch Wall Switch Voice
Control Work with Alexa Echo Google Home
Advantage:
Smart On/off Switch(With Neutral) is a product based on zigbee
wireless communication protocol,which is used to c ontrol the light
on/off.
- After connecting to internet via zigbee gateway, the switch can
be controlled through the APP.
It has the following functions:
1. Press the button to control the lights on and off.
2. Use the APP to control the lights on and off, you can also set
the timing to delay on and off.
3. Voice control with the smart speaker, such as the Google
Assistant, Amazon Alexa, Tmall Genie, Baidu speakers and so on.
【Intelligent Control】Smart automate the Tuya ZigBee wireless scene
switch to any tuya smart devices in Smart Life App to set various
scenes for your smart life.Tap-to-run to get another easier control
for all tuya smart devices with one key on the switch.Each switch
button can satisfy multiple needs, realizing different
scenes.Imagine the smart linkage to create an infinite space with
the wire scene switch.
【6 Scene Wall Switch】Three pairing modes for each button to achieve
6 scenes from one 2 gang scene switch, such as away mode, home
mode, movie mode, etc. To create any smart automation as you want
on your smart phone app to start your another intelligent
lifestyle, no more voice command needed, no more time to open your
app,only one touch required, when you are tired from one-day work.
Specification
Input:with neutral 110-240V;no neutral 220-240V 50Hz
Output: with neutral 600W/Gang ;no neutral 10-200W INC/5-150W LED
Rated Current:10A Max
WiFi:2.4G b/g/n
Size:86*86*35mm
Wireless Protocol:ZigBee
Material: fire-retardant PC
Package Listing:
ZigBee/WiFi Push Button Switch*1(Up to your option)
User Manual*1
Bag of Accessory*1
Q&A:
1.Q:Can I use my own hub to connect with the switch?
A:No,this zigbee switch can only be used with our Tuya ZigBee
gateway hub,no other hubs required.If you choose the WiFi
version,then you just do not need a ZigBee hub.
2.Q:Can I program the schedule myself?
A:Yes,our smart switch is programmable.You are able to program your
schedule freely in App.
3.Q:Can I control the connected appliances if I am not at home?
A:Yes, you are able to remotely control your device on your smart
phone App. (ZigBee hub required for the ZigBee version before
achieving the remote control)
4.Q:Does this work with Google Home?
A:Yes,it does.And it's also compatible with Alexa for free voice
control.
5.Q:Do I need to buy a wall panel to match the switch?
A:No,there is no need for you to buy as it's a kit that the switch
and the wall panel are combined together.
6.Q:Do I need to wire with a neutral wire?
A:It is up to which version you choose.For the single live wire
version the neutral wire is not needed,but for the N+L version,you
need to wire with a neutal wire.
7.Q:Is the ZigBee gateway hub included in the package?
A:No,it is not included.But you can direclty purchase it in our
online store.
