250nm Electric Roof Window Opener 0.15A Electric Awning Window Operator

Ask Lasest Price
Brand Name :	Gardens
Model Number :	GM32P
Certification :	CE/CCC
Price :	Negotiated price
Payment Terms :	L/C, T/T
Supply Ability :	10000 pieces per month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

250nm Electric Roof Window Opener 0.15A Electric Awning Window Operator

Intelligent Remote Control Life-Relaxing Smoke Sensor Electric
Window Pusher Motor
Smart Home Hand Free Greenhouse Timer Motorized Window Opener for
Roof Vent
Product Description

Name	Smart Chain Window Opener
Motor	wireless remote control or APP control
WiFi Standards	IEEE 802.11 b/n/g 2.4G Hz
Support Voice Control	Work with Amazon Alexa/Google Assistance
Chain Length	300mm / 400mm
Driving Speed	10mm/s
Max Current	0.15A
Max power	30W
Operation Temp.	–10°C to +50°C
Humidity	5%--95% non-condensing
Package Dimension	602020cm
Weight	3KG

Color Classification:220V 40KG 300Stroke Motor+Remote Control 220V 40KG 400Stroke Motor+Remote Control 220V 40KG 500Stroke Motor+Remote Control 220V 40KG Customized Stroke Motor+Remote Control

DC24V single chain window opener/DC24V single window actuator for skylights
1. DC24V safe voltage
2. Push/pull force 400N
3. Simple but delicacy design,low noise operation
4. Sandblasted oxidative surface treatment
5. Silver color standard,other colors can be customized
6. Flexible optional installation
7. Electronic overload cut off
8. Endurance tests(30,000 cycles) are carried out
9.Requires receiver(can choose wifi function) and RF transmitter,can also be equipped with a rain sensor,smoke alarm sensor
10.Stroke:300mm,400mm,500mm,600mm

Applications:

1.Intelligent protection, high-quality materials, Stroke distance can be customized according to customer needs.
2.High quality design life load open and close over 30000 times,low noise when turned on.The locking force is 2000N, which is safe and reliable.
3.12 installation methods, suitable for various window installations
4.Remote control (indoor up to 50m or more), manual button, computer centralized control, mobile phone remote, automatically open or close alternative or multiple windows.
5.Expansion of smart devices such as human body sensors, wind and rain sensors, smoke alarms, thermostats, timers, etc.
6.Stroke distance can be customized according to customer needs.

Detailed Images

Tuya Smart App Built-in Autoamtic Window Opener Features

1. Wide voltage AC100 ~ 240V input, suitable for national voltage standards

2. Different strokes can be selected by adjusting the knob switch, the maximum stroke can reach 400mm

3. Suitable for windows with a width as small as 470mm

4.Life can reach 10,000 opening and closing actions

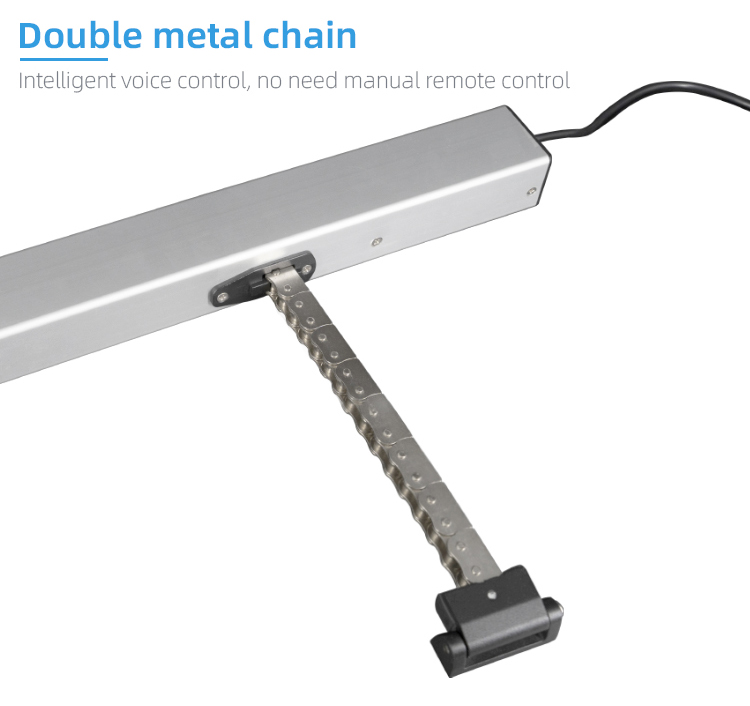

5. The chain adopts double-layer stainless steel metal sheet, which runs stably and smoothly.

6. The shell is made of sandblasted aluminum profile, and the left and right end caps and the mounting bracket are made of zinc alloy precision die castings.

7. The internal structure is fixed by two fire-rated ABS seats, and the guide rail is made of POM material to achieve a higher safety factor and silent effect

8. Simple installation and disassembly, more humane design
Safety Note:

Test the actuator at least one working cycle to make sure it works well before the installation.
Before installation make sure the stroke of actuator is smaller than max opening range of the window sash.
The housing and chain can't be scratched or blocked by the window frame, they need to be at least 3mm away from the window frame. .
Make sure the power is disconnected before installation.
Do not put your hands between window sash and frame when the actuator is working.
Trained professional staff only for the installation.

Indoor use only.
Before installation, find out the input voltage of the actuator is DC24V or AC220V .
Before installation, make sure the window is working well.
Regularly check the aging condition of wire and fasten screws, at least one time a year.
Quality Guarantee : 2years.
